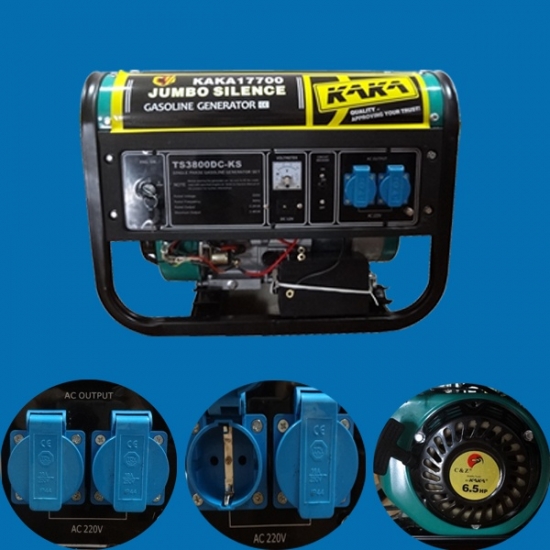

2kw silent gasoline generator
Post Time : 2013-03-11
- KAKA 17700
- NINGBO,CHINA
- GREEN & YELLOW
- KAKA
Product Details
| model | KAKA17700 | |
| rated frequency | 50 | 60 |
| rated output | 2.0KVA | 2.2KVA |
| max. output | 2.2KVA | 2.4KVA |
| rated voltage | 110/220 | 120/240 |
| rated current | 17.4/8.7A | 18.3/9.2A |
| rated speed | 3000RPM | 3600RPM |
| phase | single phase | |
| power factor | 1 | |
| insulation grade | F | |
| pole number | 2 | |
| panel type | general panel | |
| structrue type | oepn frame | |
| noise level | 66db | |
| engine model | 168F | |
| engine type | single-cylinder,four-stroke, OHV, air-cooled | |
| bore x stroke | 68 x 54mm | |
| rated power | 3.6kw/3000rpm | 4.0kw/3600rpm |
| compression ratio | 8.5:1 | |
| rated rotation speed | 3000 | 3600 |
| ignition system | T.C.I | |
| cooling system | air cooled | |
| lubrication system | spalished | |
| starting system | recoil/ electric starter | |
| fuel type | automative unleaded gasoline | |
| fuel tank | 15L | |
| continuous running time | 16hours | |
| Pakcage | ||
| dimension | 610 x 470 x 470mm | |
| Gross weight | 66kg | |
