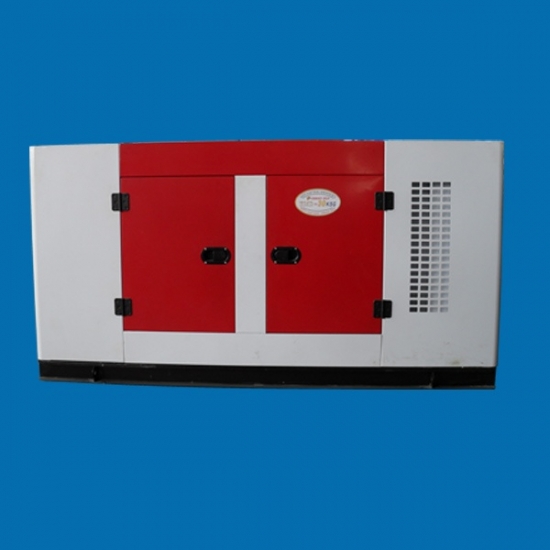

AC synchronous generator 30kw

Post Time : 2013-03-11

  • KAKA-W30
  • 1
  • NINGBO,CHINA
  • RED AND WHITE
  • KAKA

Product Details

  Model W30
  Type brushless self-excitation
  Rated Voltage 220V/380V
  Phase/Wires 3-phase/ 4 wires
ALTERNATOR Max.Power 33KW
  Rated Power 30KW
  Rated Frequency 60HZ
  Ignition System Brushless excitation with AVR
  Power Factor 0.8
  Sulation Class H
  Model K4102D
  Type Four-cylinder, four-stroke, in-line, water-cooled
  Bore x Stroke 100 x 120mm
  Displacement 3.61L
ENGINE Specific Fuel Consumption <=258.4
  Rated Speed 1800RPM
  Cont. Output 35KW
  Max.Output 38KW
  Starting System Electric
PACKAGE Net Weight 950KG
  Dimension 2100 x 900 x 1150mm
