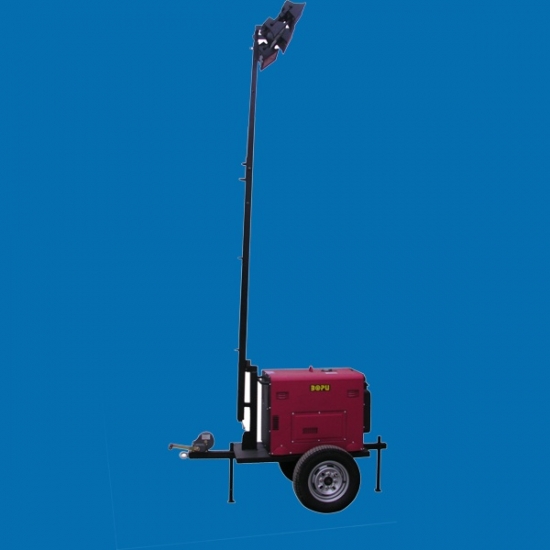

mobile lighting tower for sale

Post Time : 2013-04-07

  • DLT-A
  • Ningbo,China
  • Red
  • KAKA

Product Details
  Rated Frequency 50/60HZ
  Rated Voltage 220/380V
Generator Rated Current 18.3A/ 20.8/41.7A
  Rated Power 5KW
  DC Output 12V/8.3A
  Power Factor 1
  Model 186F
  Type Single-cylinder, 4-stroke, air-cooled
  Combustion System Direct injection combustion
  Bore x Stroke 86 x 70mm
Engine Piston Displacement 0.406L
  Rated Power 6.6KW
  Lube Capacity 1.65L
  Lube Oil Brand SAE 10W30 (above CC grade)
  Fuel Tank Capacity 25L
  Starting System Electric Starter
  Structure Silent Type
  Power of Lamps 4 x 400 W
  Light Capacity 4 x 25000 LUMEN
  Type of Lamp Metal Halide Lamp
  Light Coverage 5 to 7 ACRES
  Connection Protection Index IP54
Light & Frame Woking Temperature Less Than 85 degrees
  Lifetime of Lamp 5000 HOURS
  Max. Extension of Mast 7m
  Rasing and Falling Mast Mechanical Winch or Electric Button
  Turning Angle 360 degree
  Tire Diameter 52 CM
  Anti-wind Power Less Than 10
  Slope Less Than 10
